Drent Gazelle IMR 6
Printing machines
Technical data:
Description:
Max web Width: 445mm
Print size possibility: from 10” up to 25”
Fold size possibility: From 4” up to 17”
Equipped with:
1 Unwinder
1 Web guide renewed in 2016 using hydraulic cylinder (easy for maintenance)

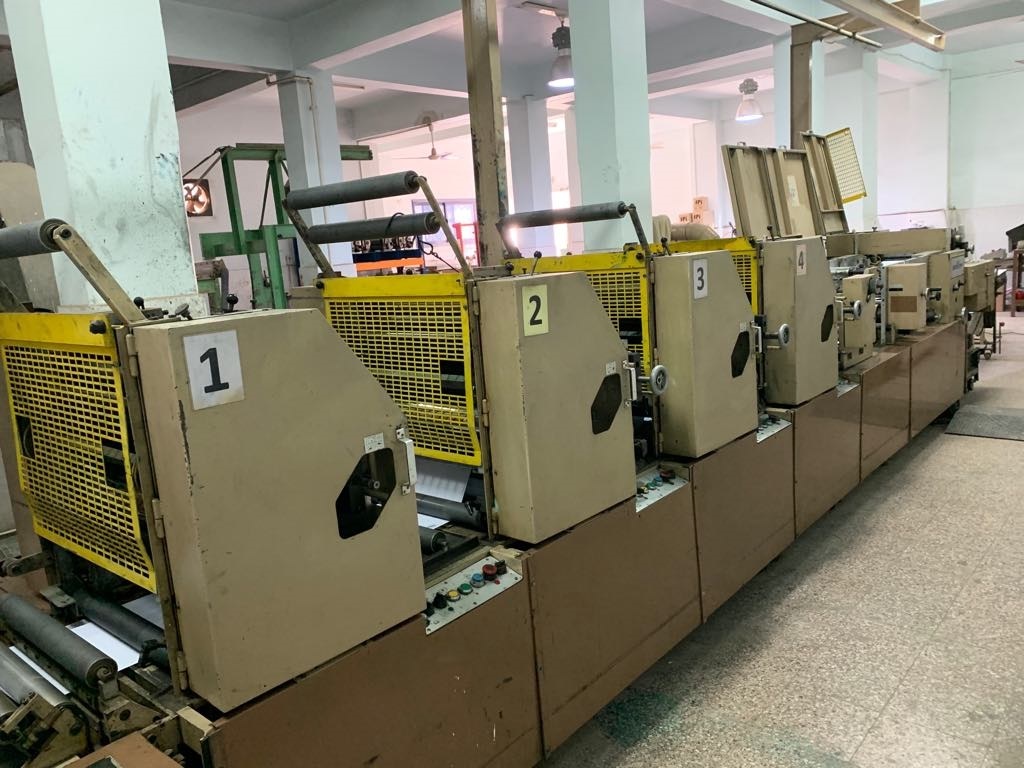

4 Printing units (Unit 1 and 2 are reversible to enable to print 1/3 or 2/2)
Print sizes: 4 Units x 17"
4 Units X 22"
4 Unites X 24"
1 Magnetic cylinder 24" totally renewed to make Electronic Tickets using metal plates (Such as Flight Boarding
Pass Folded 8” and Garage Thermal Tickets Folded 7”2/6 inch)
Double Cross perforation positioning with:
2 cylinders 17” (slotted 2x 8”1/2) (Including One Cylinder 17” with clutch brakes)
2 Cylinders 22” (Slotted 5”1/2, 11”) (Including One Cylinder 22” with clutch brakes)
2 Cylinders 24” (Slotted every 2”) (Including One Cylinder 24” with clutch brakes)
Folder with gear size: 4” - 7”2/6 - 8” - 8”1/2 - 11” - 12”
Sheeter (with stacker) renewed in 2015
Independent Rewinder: LaserMax Stralfors Rewinder RW100
2 punching unit for Folders punch
Air Brushes Cleaning system for paper
Motor Pump with alcohol level adjuster for printing water
Stroboscope Lamp
Plate bender with table
Location outside EU. We will put you through to seller.
